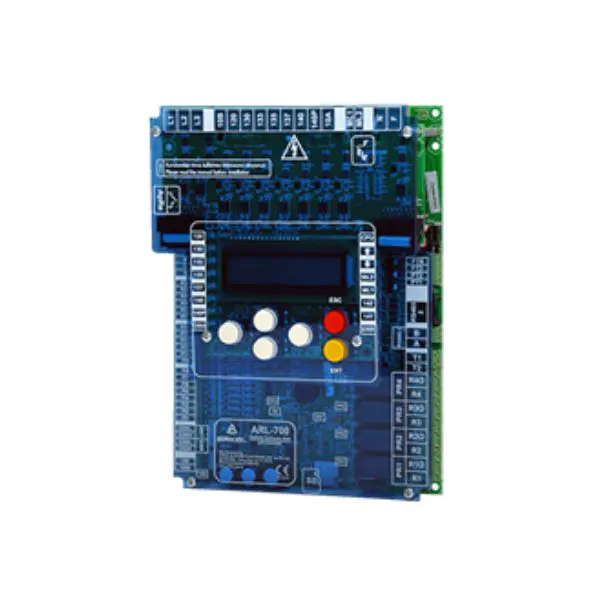

ARKEL ARL 700 Lift Control Board

Technical Features

Specification	Details
Number of Stops	64 Stops
Control Type	Single Button Pickup, Double Button Pickup
Drive Type	Hydraulic VVVF
Group Control	8
Serial Communication	With Floor and Cabin
Maximum Elevator Speed	2.5 m/s
Cabin Position Information	Magnetic Switches, Encoder System
Automatic Door Control	Single Door, Double Door
Door Bridging	Available
Display Outputs	7 Segments, Gray/Binary Code LCD Output
Programmable Input / Output	20 Inputs / 8 Outputs (4PR + 4PT)
Error Record	Up to 100 Faults
Language Options	Turkish, English (Additional Language Option with Arem)
Compliance to Standards	EN 81/1-2/20 + A3
