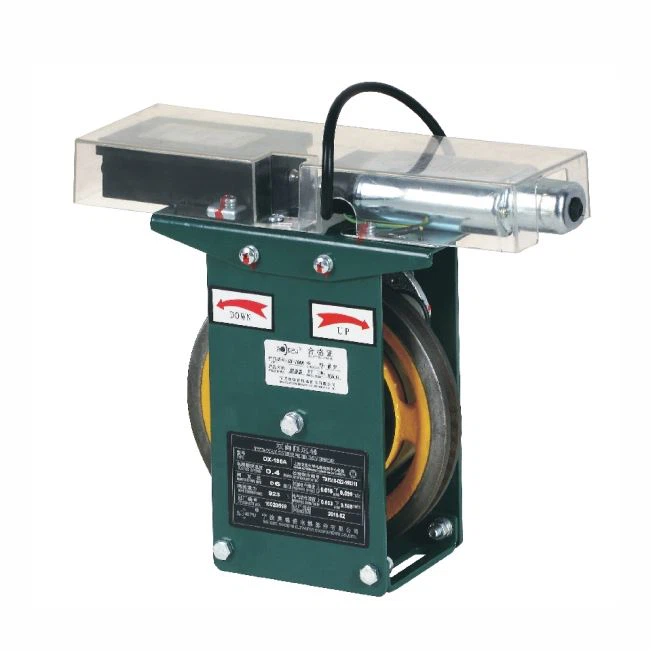

Elevator Overspeed Governor OX-186A

Product introduction



Elevator overspeed governor OX-186A, Governor Villa.



Covered specifications (Rated speed): ≤0.4m/s

Sheave diameter: Medium 150mm

Wire rope diameter: medium 6 mm

Pulling force: ≥500N

Tension device: OX-100A/ OX-100B / OX-100C .

Power supply voltage: standard AC220V, optional DC24V.

Work location: Car side or counterweight side

Upward control: permanent-magnet synchronous traction machine brake, counterweight safety gear, two-way security clamp

Downward control: safety gear

Remote control: operation and electrical switch reset can be tested electrically; the mechanical mechanism can reset automatically



1. The speed signal switch is connected to the safety circuit, switch coil switch for reset Settings, and connects the power signal.

2. The electromagnet for the test set, connect the power signal.



Product parameter (specification)



Type – Elevator parts

Category – Elevator overspeed governor

Brand – Aodepu

Model – OX-186A

Applicable – General

Warranty Time – 1year

Certificates – ISO9001
