Product introduction

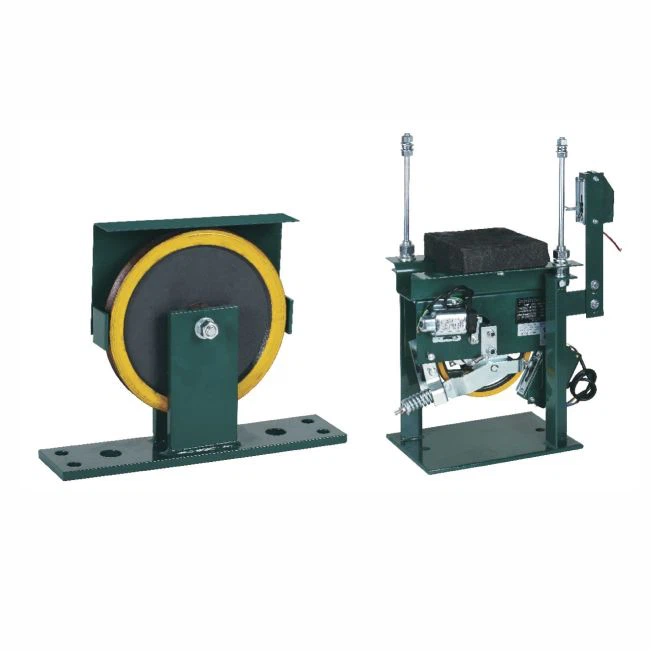

Elevator overspeed governor OX-208(A), One-way Governor.
Covered specifications(Rated speed) :≤0.63m/s; 1.0m/s; 1.5~1.6m/s; 1.75m/s
Sheave diameter: φ200mm
Wire rope diameter: φ6 mm
Pulling force: ≥500N
Tension device: (Form a complete set of matching, need not choose)
Power supply voltage: standard AC220V, optional DC24V;
Work location: Car side or counterweight side
Upward control: permanent- magnet synchronous traction machine brake, counterweight safety gear
Downward control: safety gear
Remote control: operation and electrical switch reset can be tested electrically; the mechanical mechanism can reset automatically
The speed signal is connected to the safety circuit, the reset switch, andthe test action electromagnet plugged into a power supply according to the requirements of the coil voltage.
Product parameter (specification)
Type – Elevator parts
Category – Elevator overspeed governor
Brand – Aodepu
Model – OX-208(A)
Applicable – General
Warranty Time – 1year
Certificates – ISO9001
