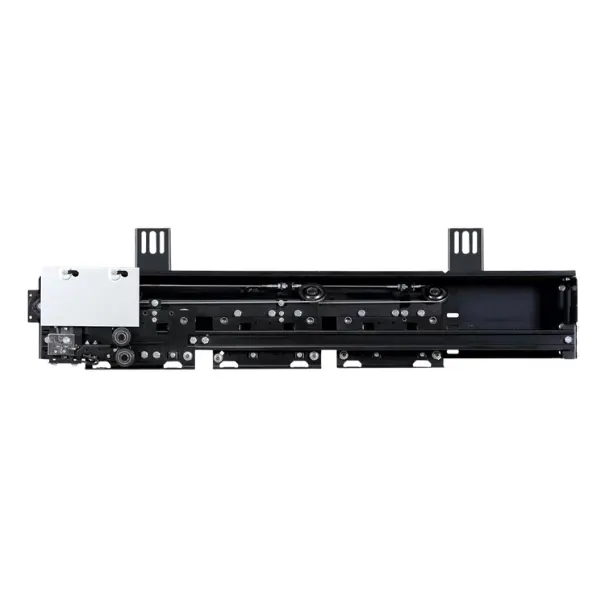

Ningbo OULING OCM-02B 2 Panel Side Opening Landing Door Device

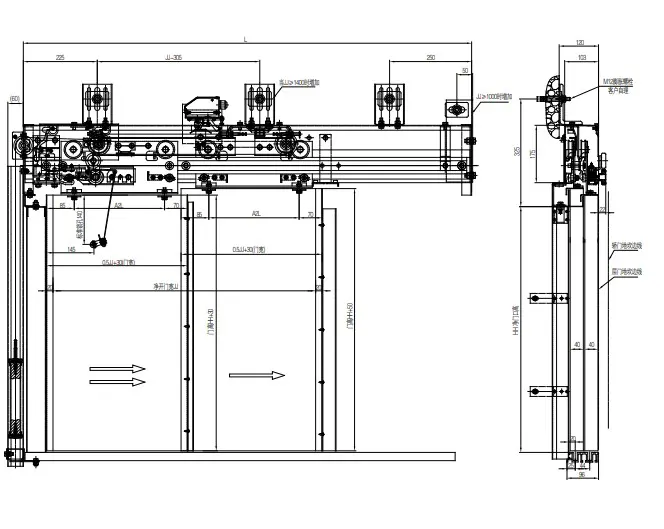

Installation Diagram

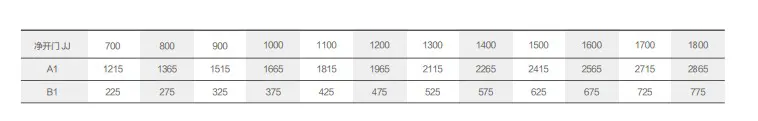

Technical Specification

Ningbo OULING OCM-02B 2 Panel Side Opening Landing Door Device – Reliable Fireproof Elevator Landing Door System for Modern Buildings

Elevator doors work thousands of times every day. If the landing door system is weak or poorly designed, it can cause noise, safety risks, and frequent maintenance problems. For building owners and elevator installers, reliability is not optional. It is essential.

The Ningbo OULING Elevator Parts Co., Ltd. OCM-02B 2 Panel Side Opening Landing Door Device offers a practical solution. It delivers stable door movement, strong locking protection, and long-term durability for modern elevator systems.

What Is the OULING OCM-02B Landing Door Device?

The OCM-02B 2 Panel Side Opening Landing Door Device is a mechanical system installed at the elevator landing to control how the elevator door opens and closes.

In this design, two door panels slide to one side rather than opening from the center. This side-opening configuration is widely used in elevators where the shaft layout or building structure requires this door movement.

The device ensures:

• Reliable door locking
• Smooth sliding door operation
• Strong mechanical stability
• Safe passenger access

Key Features of the OCM-02B Landing Door Device

1. Durable Side Opening Structure

The two-panel side-opening design provides stable door movement and accurate alignment. It reduces wear on door components during daily use.

2. Secure Elevator Door Lock

The door lock keeps the landing door fully secured when the elevator car is not present. This is a critical safety feature for passenger protection.

3. High-Strength Mechanical Components

The system uses durable metal components and precision guides. This improves structural strength and extends the service life of the landing door device.

4. Smooth and Quiet Door Operation

Optimized rollers and guide rails allow the doors to slide smoothly with minimal vibration and noise.

5. Easy Installation and Maintenance

The OCM-02B landing door device is designed for quick installation and straightforward maintenance, saving time for elevator technicians.

Ideal Applications

The OCM-02B 2 Panel Side Opening Landing Door Device works well in many building types.

Common applications include:

• Apartment buildings
• Office towers
• Shopping malls
• Hotels
• Hospitals
• Commercial elevators
• Elevator modernization projects

Its side-opening configuration makes it suitable for buildings with limited shaft space or special door layouts.

Why Choose OULING Elevator Components?

The products manufactured by Ningbo OULING Elevator Parts Co., Ltd. are widely used in elevator systems worldwide.

The brand is known for:

• Strong engineering quality
• Reliable safety systems
• Durable elevator components
• International manufacturing standards
• Consistent product performance

These qualities make the OCM-02B landing door device a dependable choice for professional elevator installations.

Frequently Asked Questions (FAQ)

Q: What is a side-opening elevator landing door?

A side-opening door moves toward one side instead of opening from the center. It is often used in elevators with space limitations.

Q: Is the OULING OCM-02B landing door safe?

Yes. The system includes a secure door locking mechanism designed to protect passengers and meet elevator safety requirements.

Q: What voltage does the door lock support?

The door lock supports ≤ AC230V and ≤ DC110V.

Q: Can the OCM-02B be used for elevator upgrades?

Yes. It can be installed in both new elevator installations and modernization projects.

Q: Where is this landing door device commonly used?

It is widely used in residential buildings, commercial elevators, and public facilities.



A reliable landing door system plays a critical role in elevator safety and efficiency. The Ningbo OULING Elevator Parts Co., Ltd. OCM-02B 2 Panel Side Opening Landing Door Device provides durability, safety, and smooth operation for modern elevator systems.

For elevator manufacturers, installers, and building developers, it is a dependable component designed for long-term performance.
