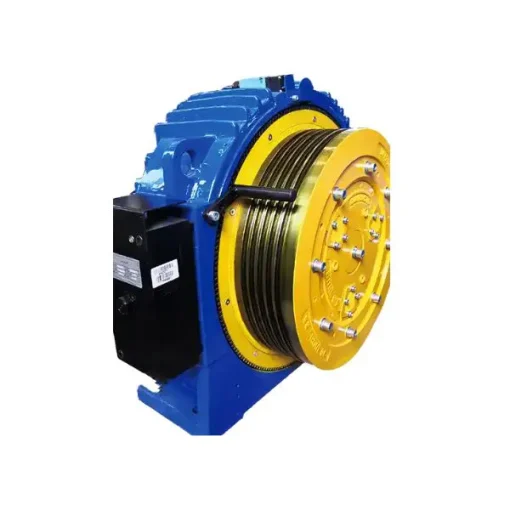

OTIS DAA20220DY Elevator Traction Motor

Specifications:

Rated payload: 8000kg-1150kg
Rated speed: 2.0m/s-2.5m/s
Protection Class: IP41
Insulation Class: F
Number of motor poles: 32
Maximum axial load: 3,500 kg
Recommended lifting height: 135m
Brake current: 1.53 A (20°C)
Braking force (dual arms): 1,100 Nm to 1,450 Nm
Operating mode: S5 40%

Categories: Elevator Traction Machine, OTIS

Description
Reviews (0)

OTIS DAA20220DY Elevator Traction Motor

The OTIS DAA20220DY Elevator Traction Motor is a dependable lift component designed for smooth, stable, and efficient elevator operation. It plays an important role in supporting safe vertical transportation in passenger elevators, apartment buildings, commercial lifts, and residential elevator systems.

When elevator performance matters, the traction motor matters too. A quality motor helps improve ride comfort, system reliability, and long-term lift performance. That is why many elevator professionals rely on trusted components from Otis Elevator Company.

Technical Data and Dimensions:

OTIS DAA20220DY Elevator Traction Motor
