Elevator 24 Core Travelling Cable

Elevator 24 Core Travelling Cable

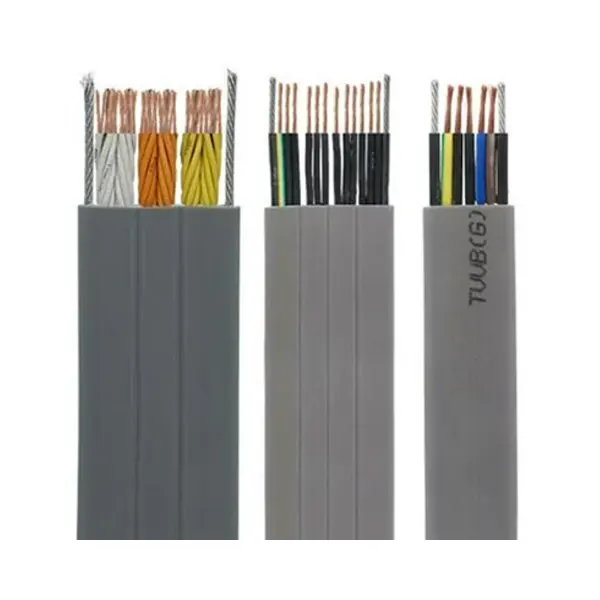

Elevator 24 Core Travelling Cable is designed for dependable power and signal transmission in elevator applications where flexibility, durability, and stable performance are essential. Built for continuous movement between the car and fixed installation points, it supports smooth elevator operation while maintaining consistent electrical communication.

This travelling cable range is available in multiple configurations to meet different elevator system requirements. Options include power cores, twisted shielded pairs, twisted shielded quads, coaxial cable, CAT7 data cable, and steel wire rope reinforcement for added mechanical strength and suspension support.

Available models include:

• LMA-1024FT: 24 x 0.75mm²
• LMA-4010TPC: 2 x 1.5mm² + 8 x (2×0.50mm²) twisted shielded pair + 1 x 75 ohm coax + steel wire ropes
• LMA-4012TPC: 4 x 1.5mm² + 2 x (4 x 0.50mm²) twisted shielded quads
• LMA-4047TPF: 20 x 1.0mm² + 12 x 0.5mm² + 4 x (2×0.5mm²) twisted shielded pairs + CAT7 (4x2x0.14)
• LMA-4024TPF: 20 x 0.75mm² + 2 x (2×0.5mm²) twisted shielded pairs
• LMA-4023TPC: 5 x 2.5 + 10 x 1 + 4 x 2x(0.34) twisted shielded pairs + steel wire ropes
• LMA-4007TPF: 4 x CAT7 (4x2x0.14)
• LMA-4007SP: 4 x CAT7 (4x2x0.14) + steel wire ropes (supported CAT7)

With a choice of power, signal, data, and reinforced structures, this elevator travelling cable range is suitable for modern lift systems requiring reliable operation, stable transmission, and long service life.
