Elevator Main Guide Rail Fishplates

Elevator Main Guide Rail Fishplates

Is your elevator suffering from “joint-knock” or vibration at high speeds? The connection between your main guide rails is the most critical factor for ride quality. Standard, low-grade plates often lead to misalignment, causing the car to shudder and increasing wear on your rollers and guide shoes.

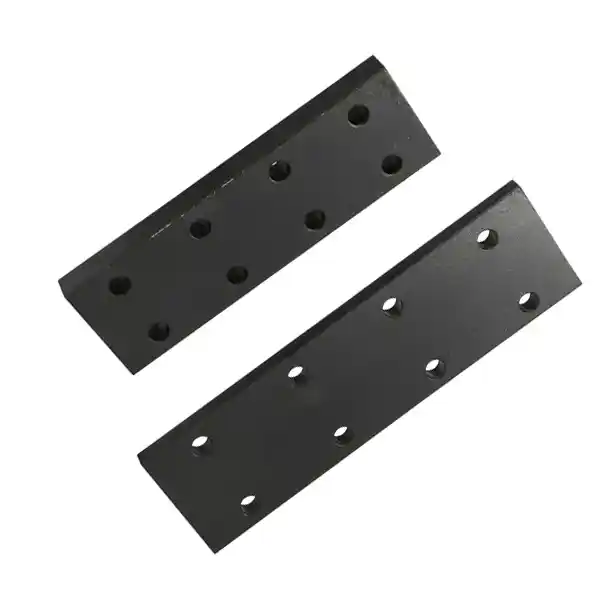

Our Elevator Main Guide Rail Fishplates are engineered for the world’s most demanding hoistways. By providing a rigid, perfectly flush connection, they transform individual rail segments into one continuous, vibration-free track.

The Foundation of a Smooth Ride

While counterweight plates handle stability, Main Guide Rail Fishplates must withstand the dynamic loads of the elevator car and its passengers. Our plates are precision-machined to ensure that the “running surface” of the rail remains perfectly straight, even under heavy load.

Elevator Main Guide Rail Fishplates Key Features and Benefits

• Precision Machined: Flatness tolerances that exceed ISO standards to eliminate joint gaps.

• High-Load Capacity: Forged from heavy-duty structural steel to prevent bending or shifting.

• Reduced Noise: Smooth transitions mean less acoustic transfer into the elevator cabin.

• Standardized Sizing: Full range available for T75, T89, T114, and T127 main rails.

• Oxidation Shield: Specialized coatings prevent rust in high-humidity shafts.

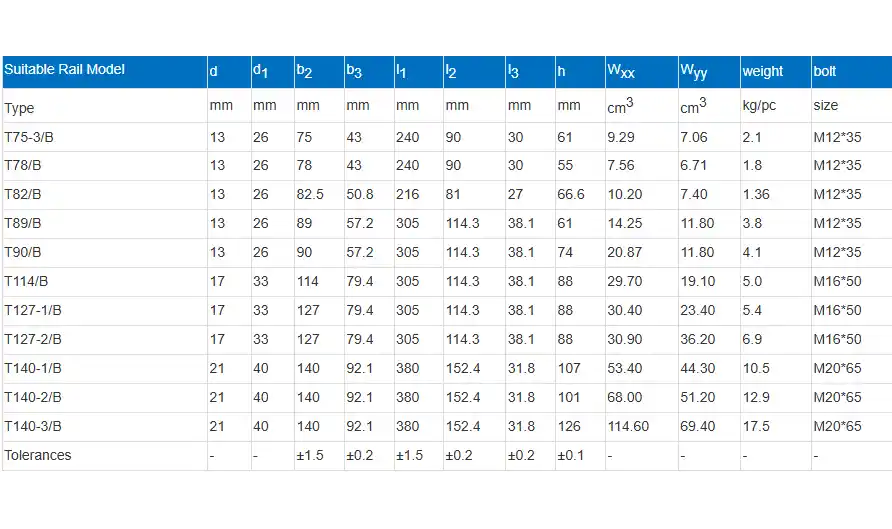

Technical Specifications

Applications and Use Cases

Our main guide rail fishplates are the first choice for:

1. High-Rise Buildings: Where rail verticality and joint integrity are non-negotiable.

2. Freight & Service Lifts: Handling massive offset loads without joint deflection.

3. Modernization & Repair: Upgrading old, thin plates to modern heavy-duty standards.

Why Trust Our Rail Components?

We specialize in the “backbone” of the elevator. Every fishplate we ship undergoes a rigorous flatness and hole-alignment check. This means your installation team spends less time shimming and more time moving the project forward. Our components provide the reliability needed to pass safety inspections and satisfy building owners.

Frequently Asked Questions

Can I use a counterweight fishplate on a main rail?

No. Main guide rails (like T89 or T127) are significantly larger and carry higher dynamic loads. You must use a dedicated main rail fishplate designed for that specific rail profile.

Do these plates come with the necessary hardware?

We supply the plates individually or as a complete assembly with high-strength bolts (Grade 8.8 or 10.9) and lock washers.

How do I prevent “joint-step”?

Using our precision-machined fishplates is the first step. During installation, ensure you use the correct torque settings on the bolts to create a unified friction connection.

Elevate Your Installation Quality

Ensure your lift system performs as intended with the industry’s most reliable rail connectors. Get the stability your project deserves.
