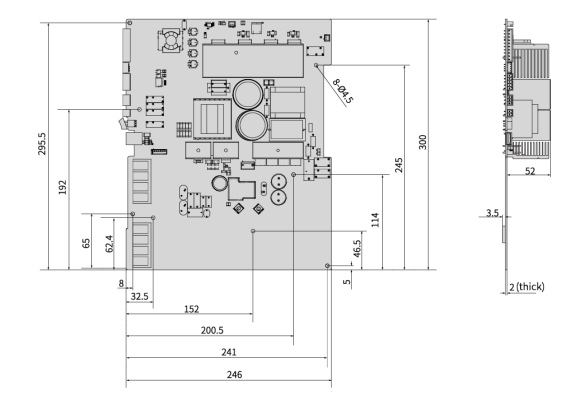

MONARCH Automatic Rescue Device ARD
MONARCH MCTC-ARD Series is the industry-standard Automatic Rescue Device (ARD) specifically engineered for seamless integration with Monarch elevator control systems. Designed to guarantee passenger safety during grid power failures, these units provide the reliable, automated backup power necessary for controlled, floor-leveling operations.
Whether your requirement is for a compact 5.5kW residential lift or a high-capacity 30kW commercial freight elevator, the MCTC-ARD series offers a modular, high-reliability solution that ensures your elevator is always operational, even when the building power is not.
MONARCH Automatic Rescue Device (ARD) Model Selection:
| Elevator Motor Power | Recommended MCTC-ARD Model | Voltage Input | Battery Config (Standard) |
| 5.5 kW | MCTC-ARD-C-4005 | 380V/220V 3-Phase | 12V/7AH*4 |
| 7.5 kW | MCTC-ARD-C-4007 | 380V/220V 3-Phase | 12V/7AH*4 |
| 11.0 kW | MCTC-ARD-C-4011 | 380V/220V 3-Phase | 12V/7AH*4 |
| 15.0 kW | MCTC-ARD-C-4015 | 380V/220V 3-Phase | 12V/7AH*4 |
| 18.5 kW | MCTC-ARD-C-4018 | 380V/220V 3-Phase | 12V/7AH*4 |
| 22.0 kW | MCTC-ARD-C-4022 | 380V/220V 3-Phase | Custom Configuration |
| 30.0 kW | MCTC-ARD-C-4030 | 380V/220V 3-Phase | Custom Configuration |
Key Technical Strengths
-
Broad Power Scalability: A comprehensive model range supporting power requirements from 5.5kW up to 30kW, covering virtually every passenger and freight application.
-
Universal Voltage Support: Engineered for flexibility, with models compatible with both 380V and 220V 3-phase AC power supplies.
-
High-Reliability Battery Configuration: Utilizes robust battery arrays (standardized at 12V/7AH*4 or equivalent high-density configurations) to provide stable emergency power for safe leveling and door operation.
-
Native “MCTC” Compatibility: Designed to synchronize perfectly with MCTC-series controllers, allowing for instantaneous detection of power loss and optimized, jerk-free leveling logic.
Reliability & Performance
-
Compact Footprint: Engineered for space-efficient installation in both traditional machine rooms and MRL (Machine-Roomless) control cabinets.
-
Proactive Monitoring: Features advanced diagnostic pathways that monitor battery health and output stability, providing actionable status alerts.
-
Global Compliance: Built to meet the stringent safety and quality requirements of global elevator standards, ensuring compatibility for international export projects.
Technical Specifications Table
| Feature | Details |
| Power Range | 5.5kW, 7.5kW, 11kW, 15kW, 18.5kW, up to 30kW |
| Voltage Compatibility | 380V or 220V (3-Phase AC) |
| Battery Configuration | 12V / 7AH * 4 (Standardized) |
| Common Models | MCTC-ARD-C-4007 (7.5kW), 4011 (11kW), 4015 (15kW) |
| Safety Logic | Intelligent Emergency Floor-Leveling & Door-Open |
| Application | Passenger, Residential, & Freight Elevators |
Why Choose MCTC-ARD from LiftPartsCN?
The MCTC-ARD is not just an accessory—it is an essential safety component that your clients trust. When you source from LiftPartsCN, you receive authentic MCTC hardware with documented certification, ensuring that your emergency rescue system performs precisely as expected under critical conditions. We provide full model-to-power-requirement matching to ensure you get the exact unit for your installation.
