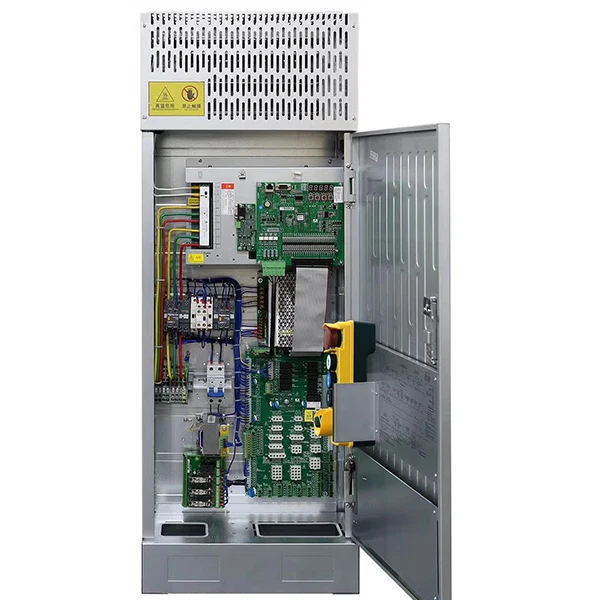

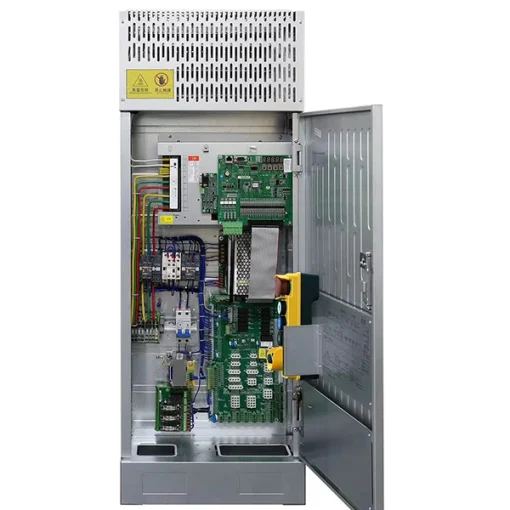

STEP C7000 Machine Room Elevator Control Cabinet

STEP C7000 Machine Room Elevator Control Cabinet

STEP C7000 series represents the pinnacle of integrated elevator control technology. Specifically designed for elevators with a dedicated machine room, the C7000 cabinet combines a high-performance inverter with intelligent logic control into one robust unit. It is engineered to provide a whisper-quiet, ultra-smooth ride while meeting the most demanding traffic requirements of modern high-rise and commercial buildings.

As a leader in the global elevator component market, STEP has built the C7000 to be a “set-and-forget” solution for contractors, focusing on long-term stability and ease of installation.

Key Technical Strengths

• Integrated Intelligence: By merging the logic controller and the drive system, the C7000 reduces internal wiring, minimizes electromagnetic interference, and significantly boosts system reliability.

• High-Speed Processing: Utilizing a 32-bit dual-CPU architecture, the system manages complex dispatching and speed curves in real-time, ensuring millimeter-precise leveling and reduced wait times.

• Universal Motor Compatibility: Whether you are running a high-efficiency Permanent Magnet Synchronous Motor (PMSM) or a traditional Asynchronous induction motor, the C7000 provides optimized vector control for both.

• Silent Operation: Advanced noise-reduction technology in the cabinet design ensures that mechanical contactor noise is kept to a minimum, preserving a quiet environment in the machine room area.

Safety & Compliance Without Compromise

Safety isn’t just a feature; it’s the foundation of the C7000. It is fully compliant with global safety standards, including EN81-20/50.

• Comprehensive Monitoring: Built-in protection for unintended car movement (UCMP), door lock short-circuits, and motor overheating.

• Emergency Rescue Ready: Seamlessly integrates with Automatic Rescue Devices (ARD) to ensure passengers are safely delivered to the nearest floor during power outages.

Technical Specifications

Why Professionals Choose the STEP C7000

Maintenance teams prefer the C7000 for its intuitive diagnostic interface. The built-in keypad and LED status indicators allow for rapid on-site troubleshooting and commissioning. The simplified wiring layout means fewer points of failure, which translates to higher building uptime and lower lifetime maintenance costs.

MR Technical Indicators
