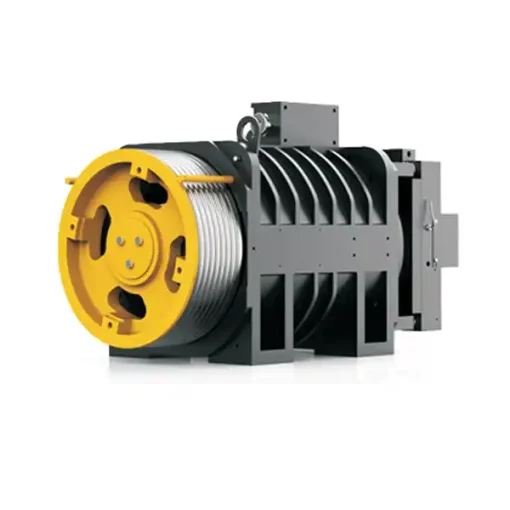

XIZI GETM3.2DS MRL Traction Machine
The XIZI GETM3.2DS is a gearless permanent-magnet synchronous traction machine for passenger elevators. Its compact 260 kg construction is intended for machine-room-less installations where shaft space, ride quality and energy use are important selection factors.
Available configurations cover rated loads from 630 to 1150 kg, elevator speeds from 1.0 to 2.0 m/s and motor power from 4 to 15.4 kW. Because the correct configuration depends on the complete elevator design, confirm the required load, speed, suspension ratio, voltage, sheave and rope data before ordering.
GETM3.2DS Technical Specifications
| Model | XIZI GETM3.2DS |
|---|---|
| Machine type | Gearless PMSM traction machine |
| Rated load range | 630–1150 kg |
| Speed range | 1.0–2.0 m/s |
| Power range | 4–15.4 kW |
| Machine weight | 260 kg |
| Protection grade | IP41 |
| Brake configuration | 2 × DSD1-770 |
| Starts per hour | 180 |
Why Specify the XIZI GETM3.2DS?
- Gearless drive: eliminates the gearbox and gear oil, reducing routine mechanical maintenance.
- MRL-oriented footprint: supports layouts where a separate machine room is not available.
- Wide duty range: multiple load, speed and power combinations allow the machine to serve residential and commercial passenger-lift projects.
- Dual brakes: two DSD1-770 brake units provide the stated braking configuration for the machine.
- Controlled passenger movement: PMSM drive technology supports accurate acceleration, deceleration and floor levelling when correctly matched with the controller and inverter.
Typical Applications
The GETM3.2DS can be considered for apartment buildings, hotels, offices and other mid-rise passenger-elevator projects, including selected modernization work. Final suitability must be checked against the elevator calculation and installation drawings.
Information Required for Selection
- Rated load and cabin weight
- Rated speed and travel height
- Suspension ratio and roping arrangement
- Power supply and inverter/controller details
- Traction-sheave diameter, groove and rope specification
- Machine mounting direction and available installation space
Request a GETM3.2DS Quotation
Send your elevator specification sheet or existing machine nameplate. LiftPartsCN can check the requested duty and confirm an appropriate GETM3.2DS configuration before quotation.
