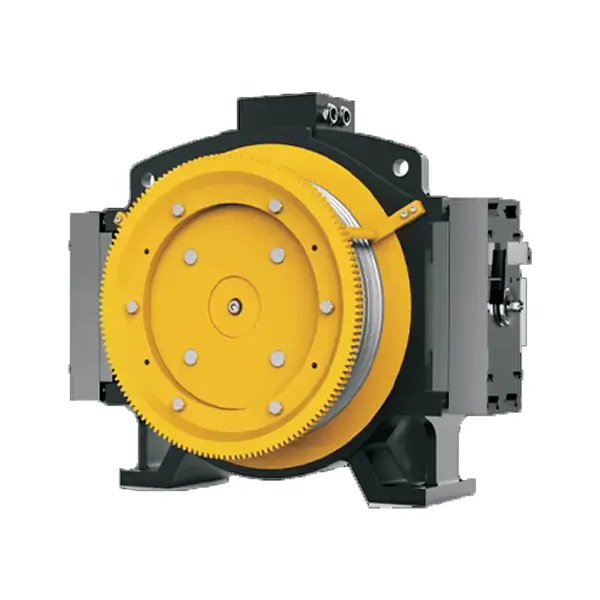

XIZI GETM3.0PRO Passenger Lift Traction Machine
The XIZI GETM3.0PRO is a compact gearless permanent-magnet synchronous traction machine for passenger elevators. It is designed for machine-room-less layouts and projects that require stable operation across frequent start-stop cycles.
Available duty points cover 800–1050 kg rated loads, 1.0–1.75 m/s speeds and 5–11.7 kW motor ratings. The machine weighs 290 kg, has an IP41 protection grade and uses two DZD2 brake units. Final selection should always be checked against the complete elevator calculation.

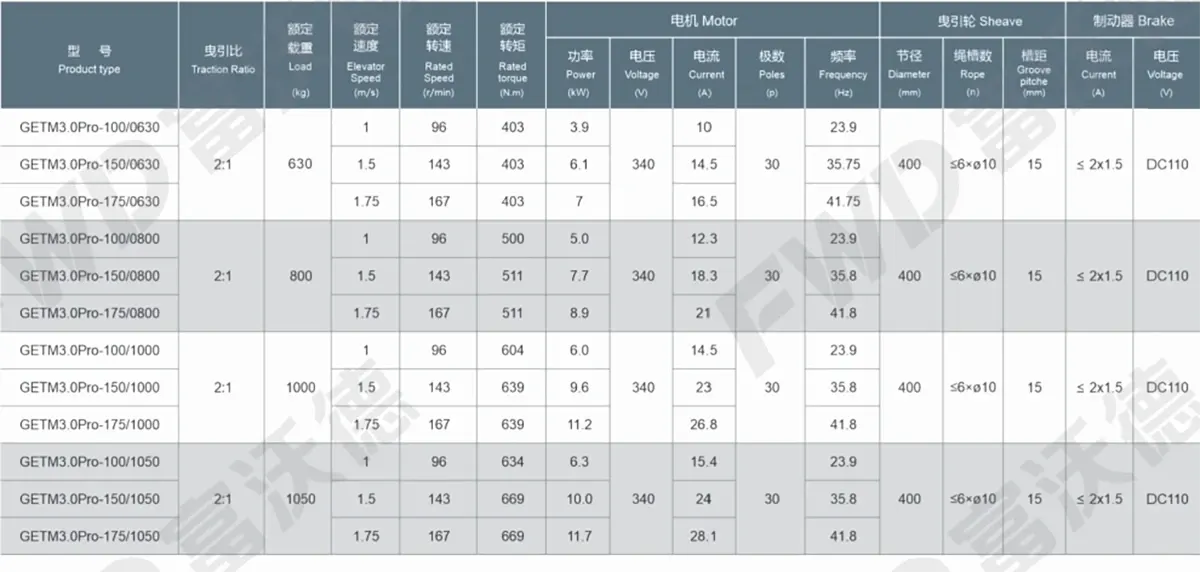

GETM3.0PRO Technical Specifications
| Model | XIZI GETM3.0PRO |
|---|---|
| Machine type | Gearless PMSM traction machine |
| Rated load range | 800–1050 kg |
| Speed range | 1.0–1.75 m/s |
| Power range | 5–11.7 kW |
| Machine weight | 290 kg |
| Protection grade | IP41 |
| Brake configuration | 2 × DZD2 |
| Maximum axial load | 3000 kg |
| Starts per hour | 180 |
| Insulation class | 155 (F) |
Product Advantages
- Compact MRL design: reduces the space required for the drive equipment and supports layouts without a conventional machine room.
- Passenger-lift duty range: the stated load and speed combinations suit many residential and mid-rise commercial projects.
- Thermal margin: Class 155 (F) insulation supports operation under repeated elevator duty cycles when the machine is correctly ventilated and commissioned.
- Dual-brake arrangement: two DZD2 brake units provide the specified stopping and holding configuration.
- Gearless construction: removes the gearbox and gear-oil maintenance associated with geared machines.
Suitable Projects
The GETM3.0PRO can be evaluated for apartment buildings, hotels, offices, shopping facilities and other passenger-elevator installations within its rated duty range. It may also be suitable for modernization projects when the mounting, roping, electrical and shaft requirements are compatible.
Selection Checklist
- Rated load, cabin weight and counterweight arrangement
- Rated speed, travel height and expected traffic
- Suspension ratio and rope specification
- Controller, inverter and encoder requirements
- Supply voltage and brake voltage

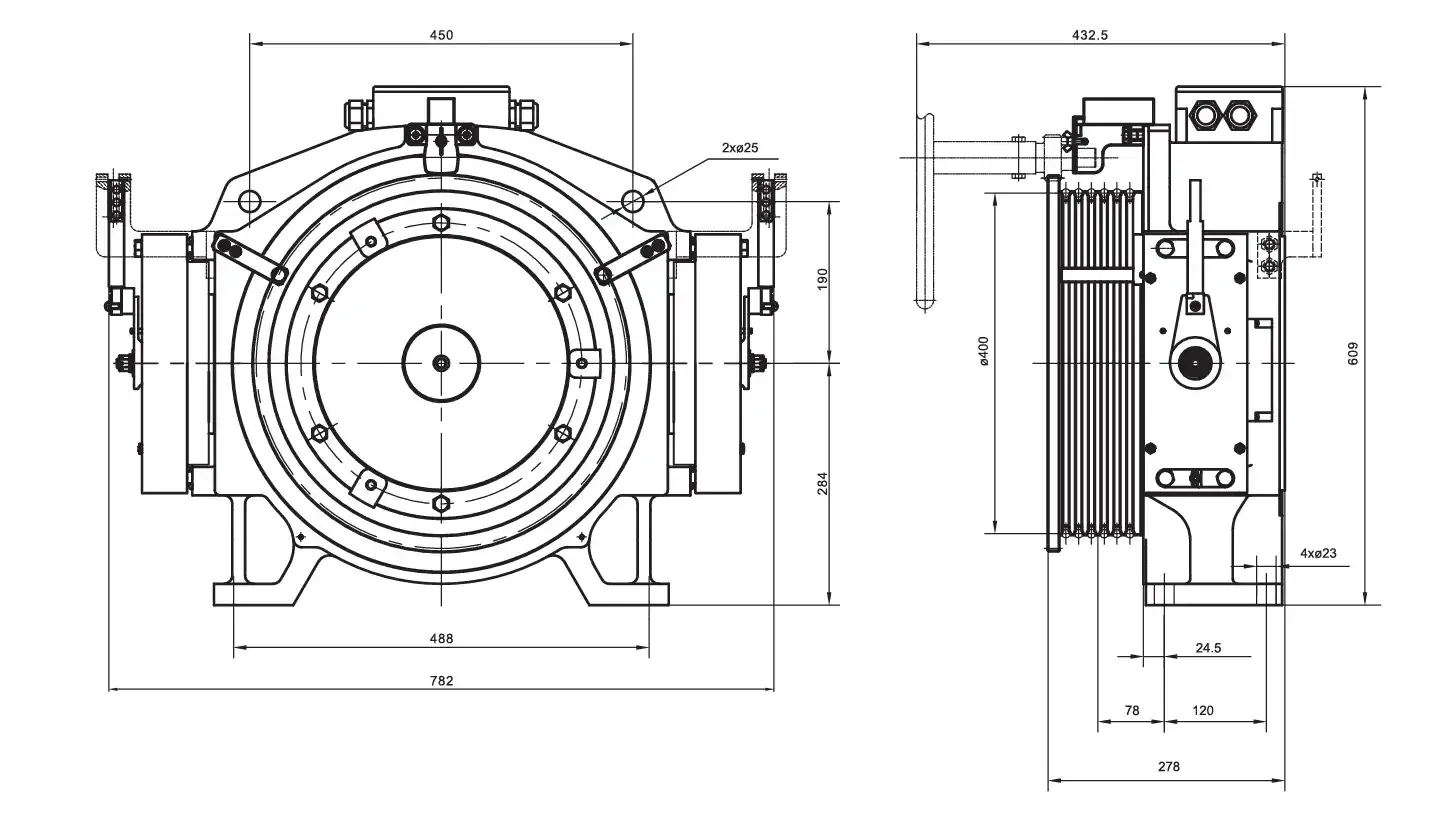

- Traction-sheave and mounting requirements
Request Technical Confirmation
Share the elevator specification sheet, project drawings or old traction-machine nameplate. LiftPartsCN can review the operating requirements and confirm a suitable GETM3.0PRO configuration before issuing a quotation.
