Is your elevator suffering from “rail-creep” or noisy transitions? The danger of using weak or low-quality rail clips is a vibrating car and accelerated wear on guide shoes. If your clips cannot handle the intense pressure of a moving lift, you risk costly misalignment and negative safety inspections.

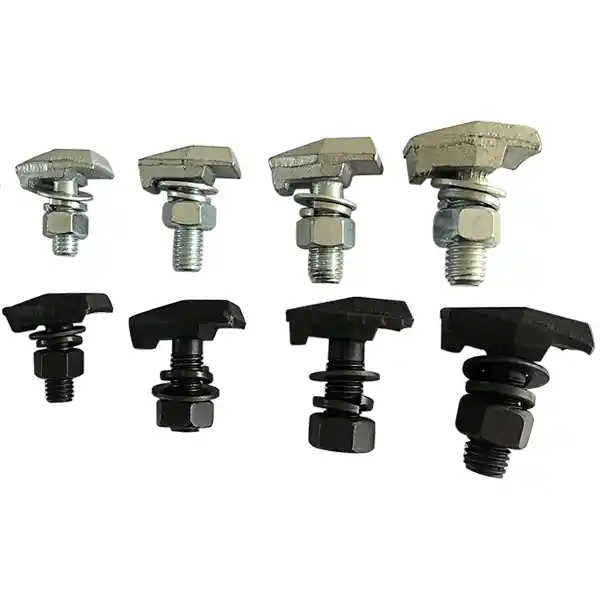

Our Elevator Guide Rail T-Clips (Forged Rail Clips) provide the unbreakable grip your system demands. Engineered to lock guide rails firmly to their brackets, these clips ensure a perfectly straight vertical path while allowing for necessary structural settling.

Precision Engineering: Eliminating the Risk of Rail Shift

Standard clips can deform under the extreme dynamic loads of a high-speed car. Our T-Clips are manufactured through a high-pressure forging process, creating a dense molecular structure that resists bending. This ensures your rails stay aligned, preventing the dangerous jolts associated with loose guide systems.

Key Features and Benefits

• Ultimate Grip Strength: Forged steel construction prevents the rail from twisting or shifting.

• Vibration Absorption: Precision-fit design minimizes harmonic noise transfer into the cabin.

• Adjustable Alignment: Allows for easy fine-tuning of the rail position during installation.

• Anti-Corrosive Finish: Treated with black oxide or galvanization to survive harsh hoistway conditions.

• Universal Compatibility: Designed to fit standard T-Type rails (T45, T50, T70, T89, T114, T127).

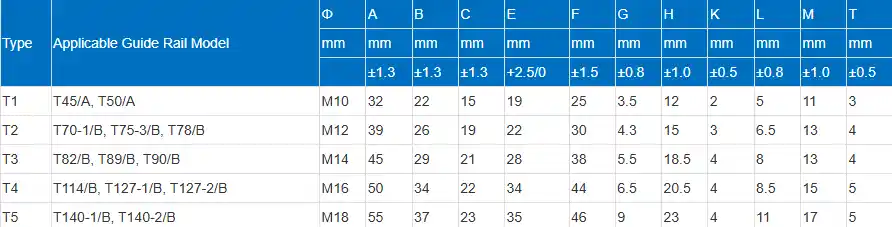

Technical Specifications & Size Guide

We offer a comprehensive range of 7 specialized models to match your specific rail profile and bracket thickness.

Applications and Use Cases

1. Main Guide Rails: Securing the primary car path for a smooth, silent passenger experience.

2. Counterweight Rails: Ensuring the counterweight frame travels without lateral sway.

3. High-Speed Modernization: Upgrading old clips to handle the forces of modern, faster traction machines.

4. Seismic Zones: Providing the extra clamping force required for elevators in earthquake-prone areas.

Why Trust Our Rail Hardware?

In the elevator industry, a “failed” clip is a dangerous liability. We provide T-Clips that meet strict international standards, including EN 81-20/50. By using our forged clips, you reduce maintenance labor and ensure your guide rails remain a permanent, rigid backbone for your lift system.

Frequently Asked Questions

What is the advantage of forged clips over cast clips?

Forged clips are significantly stronger and less brittle than cast versions. They can withstand higher impacts without cracking, which is a critical safety factor for elevators.

How do sliding clips differ from rigid clips?

Sliding clips allow the rail to “breathe” or move slightly vertically during building compression, preventing the rail from buckling. Rigid clips lock the rail in place for permanent positioning.

What finish is best for high-humidity shafts?

For damp environments or coastal areas, we recommend our hot-dip galvanized T-Clips to prevent the negative effects of oxidation and rust.

Secure Your Rails with Absolute Confidence

Don’t let a small component compromise your installation’s safety. Choose the T-Clips that professionals rely on for high-performance projects.
