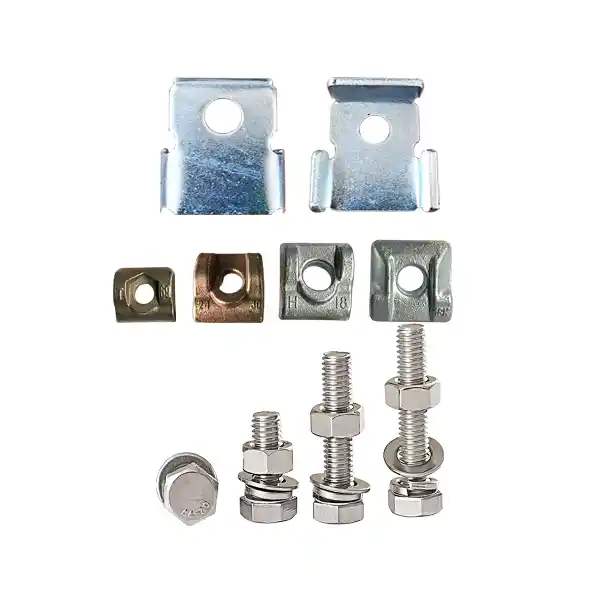

Lift Guide Rail Clips

Lift Guide Rail Clips

Are your elevator cars experiencing “shudder” or lateral sway during travel? The danger of using substandard lift guide rail clips is a compromised vertical path. If your clips lack the necessary clamping force, the rails can shift over time, leading to negative safety reports and an uncomfortable, noisy ride for passengers.

Our Professional Lift Guide Rail Clips are the industry’s most reliable solution for rail fixation. Engineered to hold guide rails in perfect alignment, these clips provide a secure grip that withstands the high dynamic forces of modern traction systems.

Engineering Precision: Eliminating the Risk of Misalignment

In a busy hoistway, vibration is the enemy of stability. Standard clips can loosen or deform, creating dangerous gaps at rail joints. Our clips are manufactured using high-pressure forging or precision casting, ensuring a rock-solid connection between the rail and the bracket. This prevents the “rattling” effect and ensures long-term structural integrity.

Key Features and Benefits

• Superior Clamping Force: High-tensile steel prevents the guide rail from twisting or bowing.

• Vibration Dampening: Precision-fit geometry reduces harmonic noise in the elevator cabin.

• Building Settlement Ready: Available in sliding models to accommodate natural building compression without buckling the rails.

• Durable Coatings: Galvanized or black-oxide finishes protect against the negative impact of rust in humid shafts.

• Fast Installation: Symmetrical design allows for quick mounting and easy adjustment.

Technical Specifications & Model Selection

We offer 12 specialized models to fit every T-section rail from light counterweights to heavy-duty freight lifts.

Applications and Use Cases

1. Main Guide Rail Fixation: Ensuring the elevator car stays on a whisper-quiet, vertical track.

2. Counterweight Stability: Keeping the counterweight frame secure and balanced.

3. Modernization Projects: Replacing worn-out, rusted, or bent clips to restore ride quality.

4. High-Speed Lifts: Providing the extra-rigid mounting required for elevators exceeding 2.0m/s.

Why Trust Our Rail Components?

Safety is the heartbeat of the lift industry. Our guide rail clips undergo rigorous stress testing to ensure they meet EN 81-20/50 global standards. By choosing our forged hardware, you minimize the risk of maintenance callbacks and ensure your lift system passes every inspection with flying colors.

Frequently Asked Questions

Why should I choose forged clips over pressed steel?

Forged clips offer significantly higher yield strength. They won’t “stretch” or lose their grip under the heavy braking forces of a safety gear deployment, which is a vital safety feature.

How many clips are needed per rail?

This depends on the bracket spacing (span) and the lift capacity. Typically, two clips are used per bracket, with brackets spaced every 2.5 to 3.5 meters.

Do you provide clips for seismic-rated installations?

Yes. Our heavy-duty T-series forged clips are designed to provide the enhanced clamping force required for seismic zones to prevent rails from detaching during an event.

Secure Your Rails with Absolute Confidence

Don’t let a small fastener lead to a failed installation. Upgrade to the rail clips that professional engineers trust for safety and silence.
